WireGuard Easy

You have found the easiest way to install & manage WireGuard on any Linux host!

Features

• All-in-one: WireGuard + Web UI.
• Easy installation, simple to use.

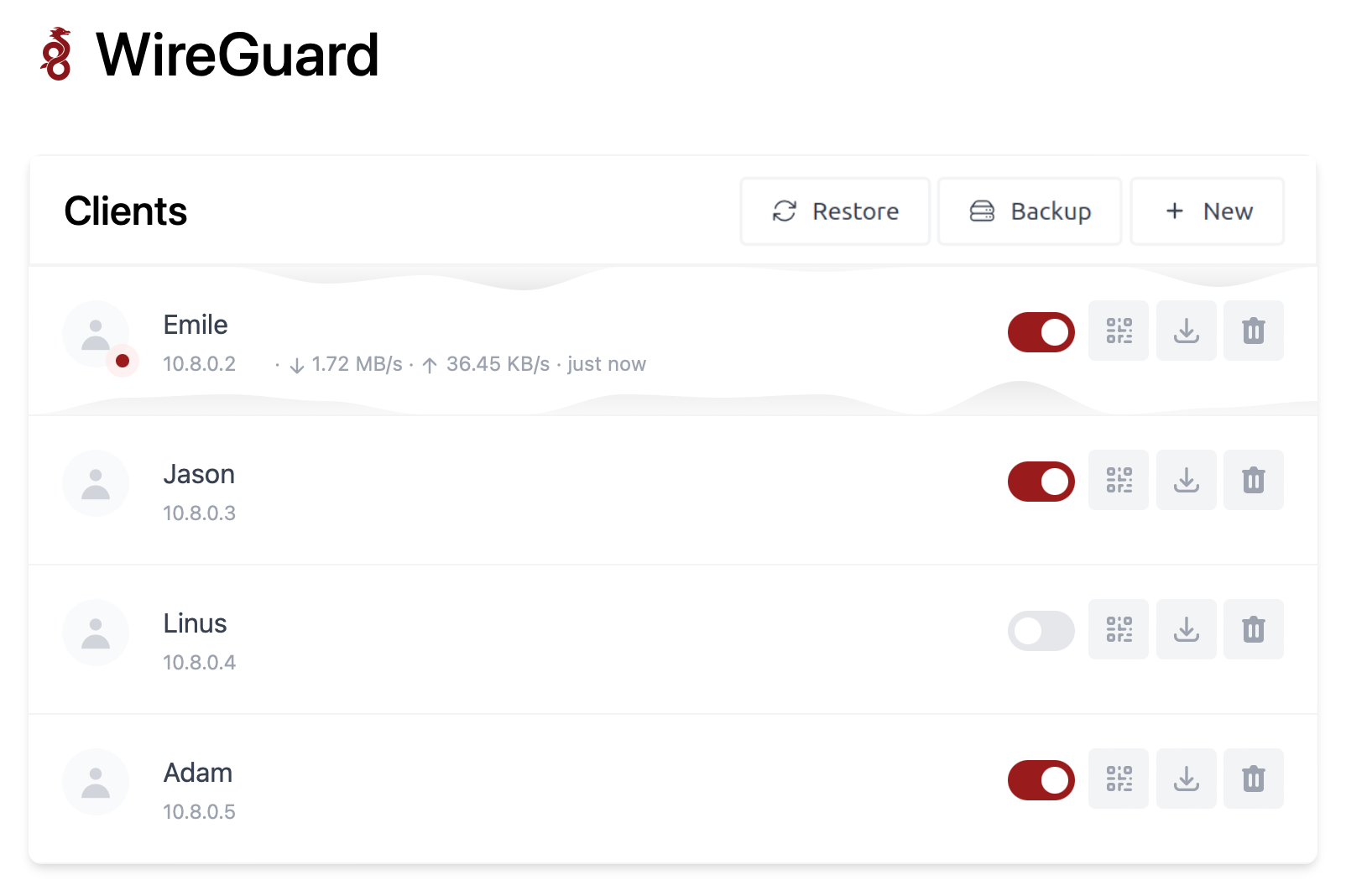

• List, create, edit, delete, enable & disable clients.
• Show a client's QR code.
• Download a client's configuration file.
• Statistics for which clients are connected.
• Tx/Rx charts for each connected client.
• Gravatar support.
• Automatic Light / Dark Mode
• Multilanguage Support
• UI_TRAFFIC_STATS (default off)

Requirements

• A host with a kernel that supports WireGuard (all modern kernels).
• A host with Docker installed.

Versions

This branch is only for the v14 release of WireGuard Easy. For newer versions, please refer to the master branch.

Installation

1. Install Docker

If you haven't installed Docker yet, install it by running:

curl -sSL https://get.docker.com | sh
sudo usermod -aG docker $(whoami)
exit

And log in again.

2. Run WireGuard Easy

To automatically install & run wg-easy, simply run:

  docker run -d \
  --name=wg-easy \
  -e LANG=de \
  -e WG_HOST=<🚨YOUR_SERVER_IP> \
  -e PASSWORD_HASH=<🚨YOUR_ADMIN_PASSWORD_HASH> \
  -e PORT=51821 \
  -e WG_PORT=51820 \
  -v ~/.wg-easy:/etc/wireguard \
  -p 51820:51820/udp \
  -p 51821:51821/tcp \
  --cap-add=NET_ADMIN \
  --cap-add=SYS_MODULE \
  --sysctl="net.ipv4.conf.all.src_valid_mark=1" \
  --sysctl="net.ipv4.ip_forward=1" \
  --restart unless-stopped \
  ghcr.io/wg-easy/wg-easy:14

💡 Replace YOUR_SERVER_IP with your WAN IP, or a Dynamic DNS hostname.

💡 Replace YOUR_ADMIN_PASSWORD_HASH with a bcrypt password hash to log in on the Web UI. See How_to_generate_an_bcrypt_hash.md for know how generate the hash.

The Web UI will now be available on http://0.0.0.0:51821.

💡 Your configuration files will be saved in ~/.wg-easy

WireGuard Easy can be launched with Docker Compose as well - just download docker-compose.yml, make necessary adjustments and execute docker compose up --detach.

3. Sponsor

Are you enjoying this project? Buy Emile a beer! 🍻

Options

These options can be configured by setting environment variables using -e KEY="VALUE" in the docker run command.

Env	Default	Example	Description
PORT	51821	6789	TCP port for Web UI.
WEBUI_HOST	0.0.0.0	localhost	IP address web UI binds to.
PASSWORD_HASH	-	$2y$05$Ci...	When set, requires a password when logging in to the Web UI. See How to generate an bcrypt hash.md for know how generate the hash.
WG_HOST	-	vpn.myserver.com	The public hostname of your VPN server.
WG_DEVICE	eth0	ens6f0	Ethernet device the wireguard traffic should be forwarded through.
WG_PORT	51820	12345	The public UDP port of your VPN server. WireGuard will listen on that (othwise default) inside the Docker container.
WG_CONFIG_PORT	51820	12345	The UDP port used on Home Assistant Plugin
WG_MTU	null	1420	The MTU the clients will use. Server uses default WG MTU.
WG_PERSISTENT_KEEPALIVE	0	25	Value in seconds to keep the "connection" open. If this value is 0, then connections won't be kept alive.
WG_DEFAULT_ADDRESS	10.8.0.x	10.6.0.x	Clients IP address range.
WG_DEFAULT_DNS	1.1.1.1	8.8.8.8, 8.8.4.4	DNS server clients will use. If set to blank value, clients will not use any DNS.
WG_ALLOWED_IPS	0.0.0.0/0, ::/0	192.168.15.0/24, 10.0.1.0/24	Allowed IPs clients will use.
WG_PRE_UP	...	-	See config.js for the default value.
WG_POST_UP	...	iptables ...	See config.js for the default value.
WG_PRE_DOWN	...	-	See config.js for the default value.
WG_POST_DOWN	...	iptables ...	See config.js for the default value.
LANG	en	de	Web UI language (Supports: en, ua, ru, tr, no, pl, fr, de, ca, es, ko, vi, nl, is, pt, chs, cht, it, th, hi).
UI_TRAFFIC_STATS	false	true	Enable detailed RX / TX client stats in Web UI
UI_CHART_TYPE	0	1	UI_CHART_TYPE=0 # Charts disabled, UI_CHART_TYPE=1 # Line chart, UI_CHART_TYPE=2 # Area chart, UI_CHART_TYPE=3 # Bar chart

If you change WG_PORT, make sure to also change the exposed port.

Updating

To update to the latest version, simply run:

docker stop wg-easy
docker rm wg-easy
docker pull ghcr.io/wg-easy/wg-easy:14

And then run the docker run -d \ ... command above again.

With Docker Compose WireGuard Easy can be updated with a single command: docker compose up --detach --pull always (if an image tag is specified in the Compose file and it is not latest, make sure that it is changed to the desired one; by default it is omitted and defaults to latest).
The WireGuard Easy container will be automatically recreated if a newer image was pulled.
