WireGuard Easy

You have found the easiest way to install & manage WireGuard on any Linux host!

Features

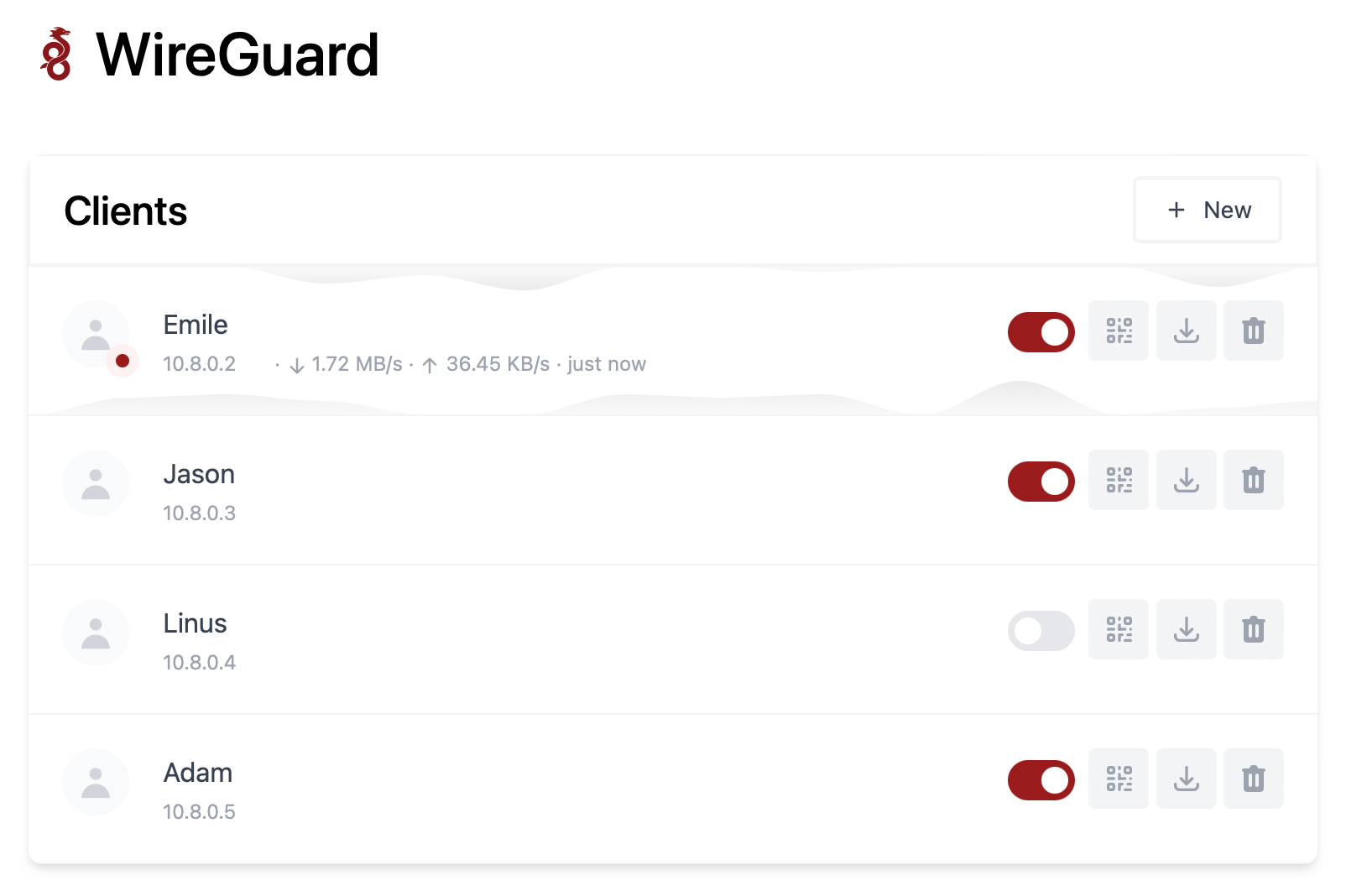

All-in-one: WireGuard + Web UI.
Easy installation, simple to use.
List, create, edit, delete, enable & disable clients.
Show a client's QR code.
Download a client's configuration file.
Statistics for which clients are connected.
Tx/Rx charts for each connected client.
Gravatar support.

Requirements

A host with a kernel that supports WireGuard (all modern kernels).
A host with Docker installed.

Installation

1. Install Docker

If you haven't installed Docker yet, install it by running:

$ curl -sSL https://get.docker.com | sh
$ sudo usermod -aG docker $(whoami)
$ exit

And log in again.

2. Run WireGuard Easy

To automatically install & run wg-easy, simply run:

$ docker run -d \
  --name=wg-easy \
  -e WG_HOST=🚨YOUR_SERVER_IP \
  -e PASSWORD=🚨YOUR_ADMIN_PASSWORD \
  -v ~/.wg-easy:/etc/wireguard \
  -p 51820:51820/udp \
  -p 51821:51821/tcp \
  --cap-add=NET_ADMIN \
  --cap-add=SYS_MODULE \
  --sysctl="net.ipv4.conf.all.src_valid_mark=1" \
  --sysctl="net.ipv4.ip_forward=1" \
  --restart unless-stopped \
  weejewel/wg-easy

Or to use Docker Compose (installation), create the file docker-compose.yml with the following contents:

version: '3.3'
services:
    wg-easy:
        container_name: wg-easy
        environment:
            - WG_HOST=🚨YOUR_SERVER_IP
            - PASSWORD=🚨YOUR_ADMIN_PASSWORD
        volumes:
            - '~/.wg-easy:/etc/wireguard'
        cap_add:
            - NET_ADMIN
            - SYS_MODULE
        sysctls:
            - net.ipv4.conf.all.src_valid_mark=1
            - net.ipv4.ip_forward=1
        ports:
            - '51820:51820/udp'
            - '51821:51821/tcp'
        restart: unless-stopped
        image: weejewel/wg-easy

and then run $ docker compose up -d in the same directory as the file you just created.

💡 Replace YOUR_SERVER_IP with your WAN IP, or a Dynamic DNS hostname.

💡 Replace YOUR_ADMIN_PASSWORD with a password to log in on the Web UI.

The Web UI will now be available on http://0.0.0.0:51821.

💡 Your configuration files will be saved in ~/.wg-easy

Are you enjoying this project? Buy me a beer! 🍻

Options

These options can be configured by setting environment variables using -e KEY="VALUE" in the docker run command or by adding additional lines in the format - KEY=VALUE in the environment section if using Compose.

Env	Default	Example	Description
`PASSWORD`	-	`foobar123`	When set, requires a password when logging in to the Web UI.
`WG_HOST`	-	`vpn.myserver.com`	The public hostname of your VPN server.
`WG_DEVICE`	`eth0`	`ens6f0`	Ethernet device the wireguard traffic should be forwarded through.
`WG_PORT`	`51820`	`12345`	The public UDP port of your VPN server. WireGuard will always listen on `51820` inside the Docker container.
`WG_MTU`	`null`	`1420`	The MTU the clients will use. Server uses default WG MTU.
`WG_PERSISTENT_KEEPALIVE`	`0`	`25`	Value in seconds to keep the "connection" open. If this value is 0, then connections won't be kept alive.
`WG_DEFAULT_ADDRESS`	`10.8.0.x`	`10.6.0.x`	Clients IP address range.
`WG_DEFAULT_DNS`	`1.1.1.1`	`8.8.8.8, 8.8.4.4`	DNS server clients will use.
`WG_ALLOWED_IPS`	`0.0.0.0/0, ::/0`	`192.168.15.0/24, 10.0.1.0/24`	Allowed IPs clients will use.
`WG_PRE_UP`	`...`	-	See config.js for the default value.
`WG_POST_UP`	`...`	`iptables ...`	See config.js for the default value.
`WG_PRE_DOWN`	`...`	-	See config.js for the default value.
`WG_POST_DOWN`	`...`	`iptables ...`	See config.js for the default value.

If you change WG_PORT, make sure to also change the exposed port.

Updating

To update to the latest version, simply run:

docker stop wg-easy
docker rm wg-easy
docker pull weejewel/wg-easy

And then run the docker run -d \ ... command above again. Alternatively, if using Docker Compose navigate to the folder containing your docker-compose.yml file and run $ docker compose up.
